Afer Iteration 16 - Dec1511

• The 16th iteration is done using the 32-bit calibration software but the 14th iteration is done using the 64-bit.
  The other conditions between them are the same
• The 13th iteration is the starting line for both iterations.

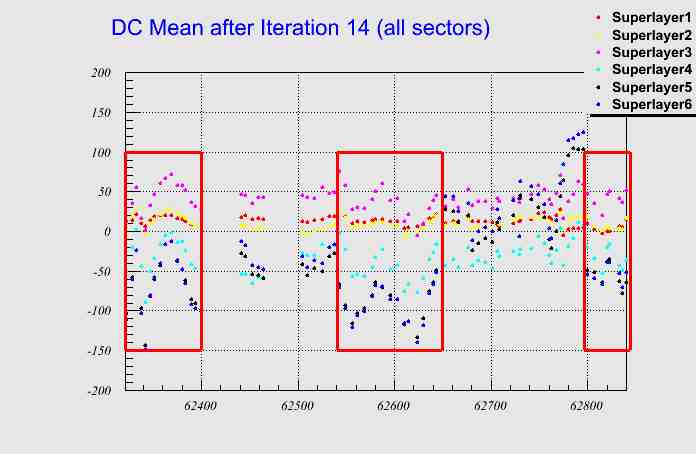

• In the 14th iteration, some runs are calibrated (in the red box, 62321-62400, 62541-62650, and, 62797-62844)
• In the 16th iteration, all runs in the graphe are calibrtated

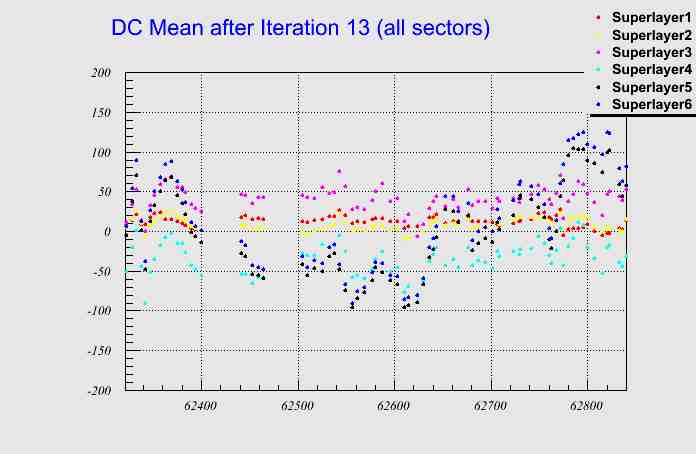

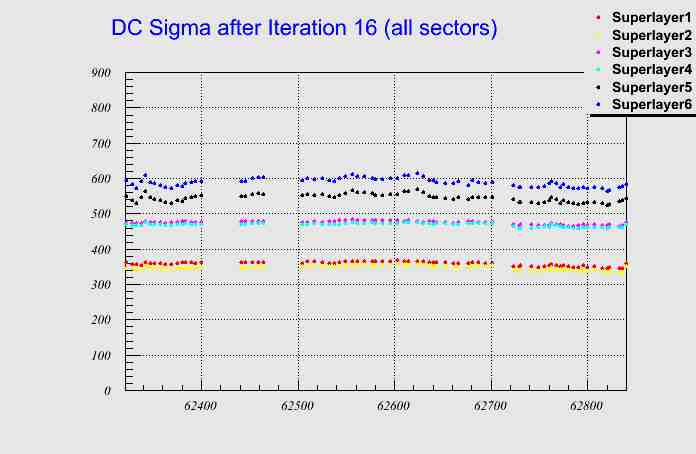

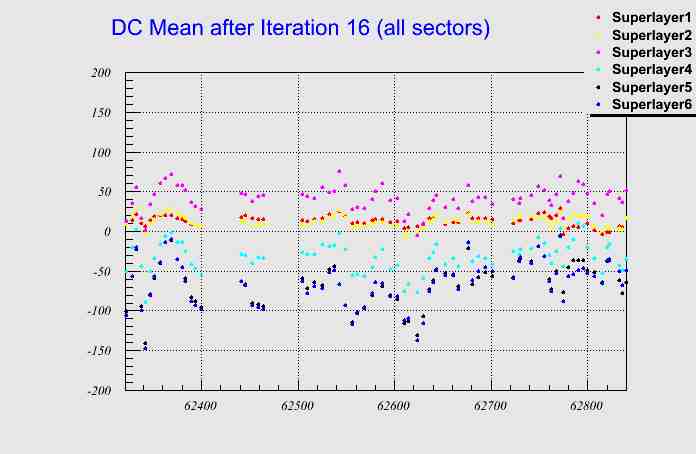

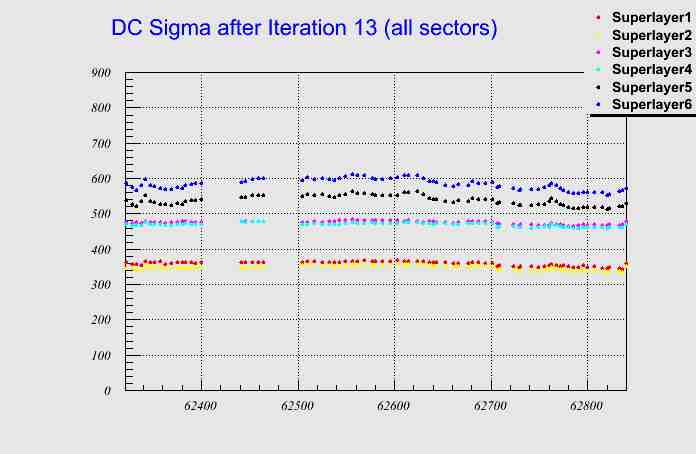

All Sector

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

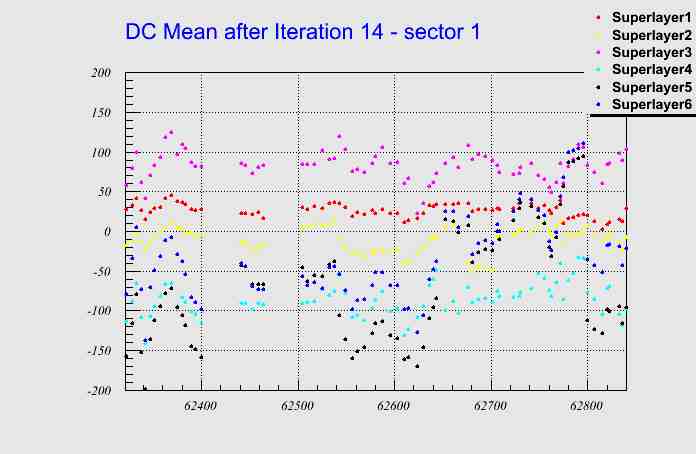

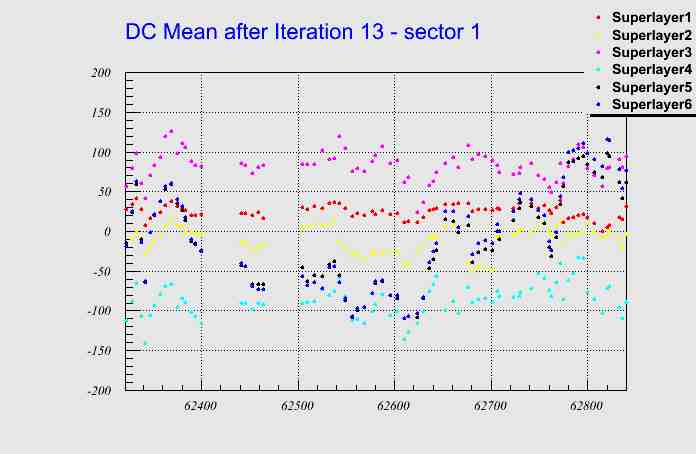

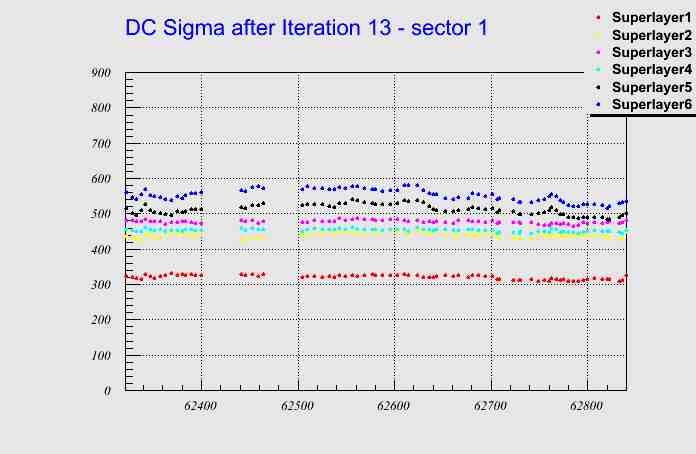

Sector 1

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

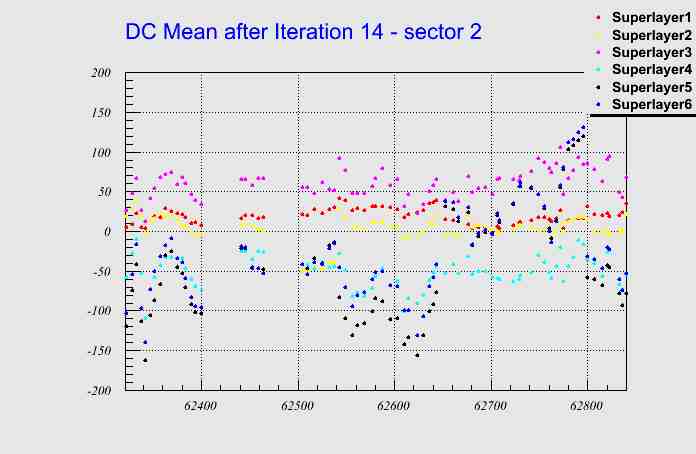

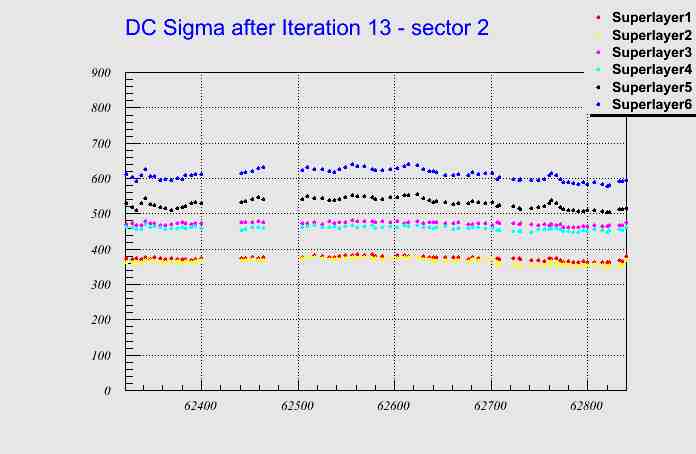

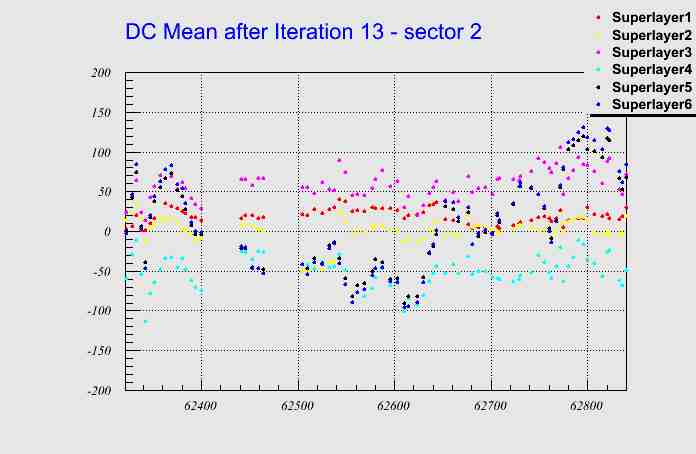

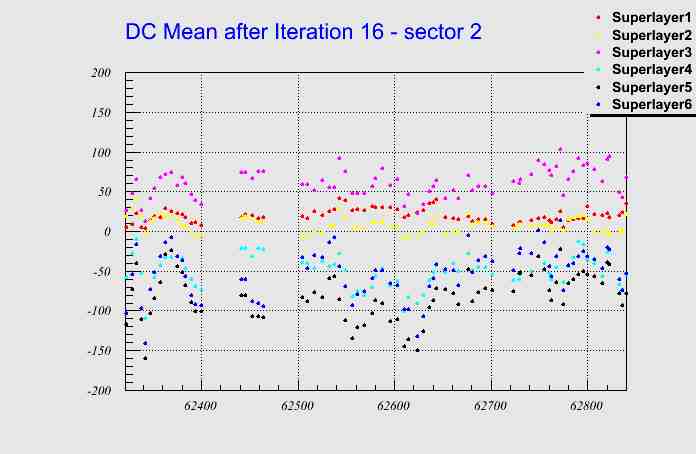

Sector 2

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

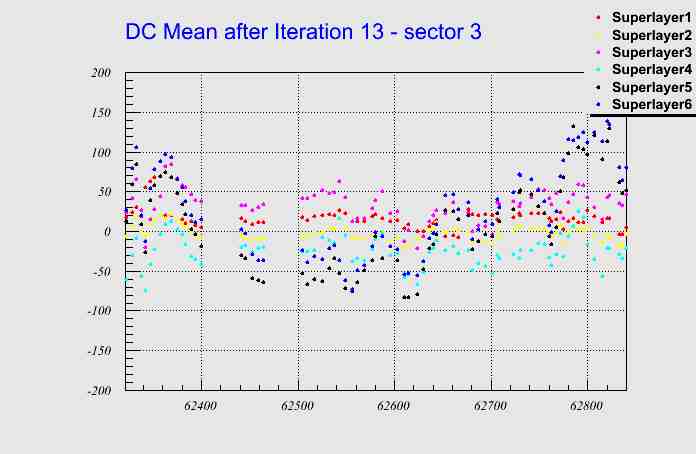

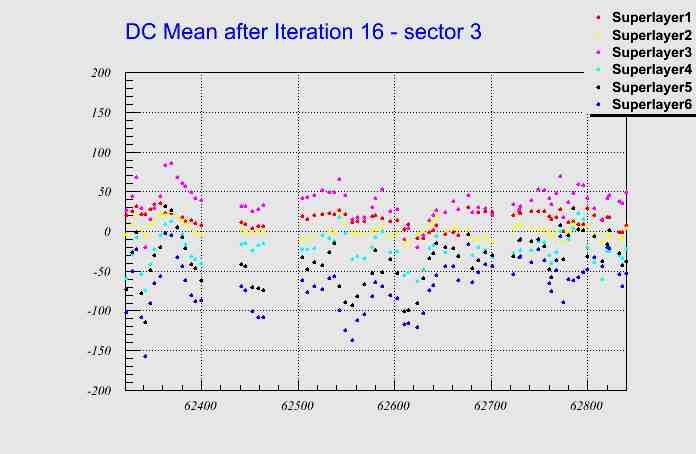

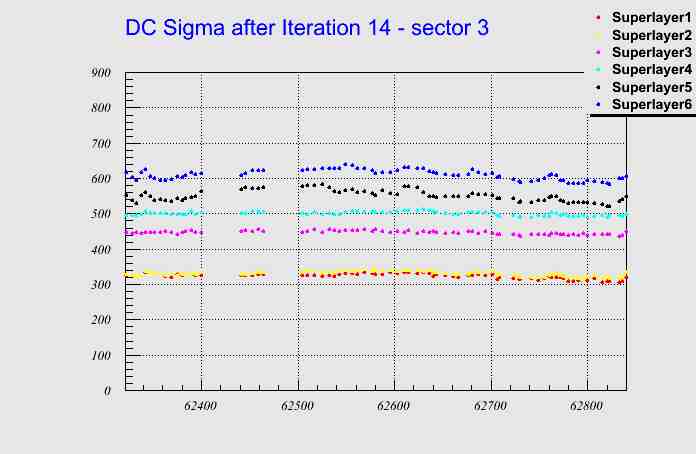

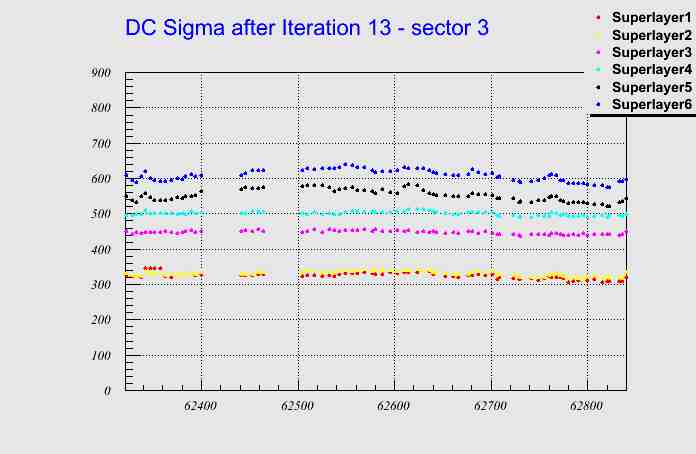

Sector 3

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

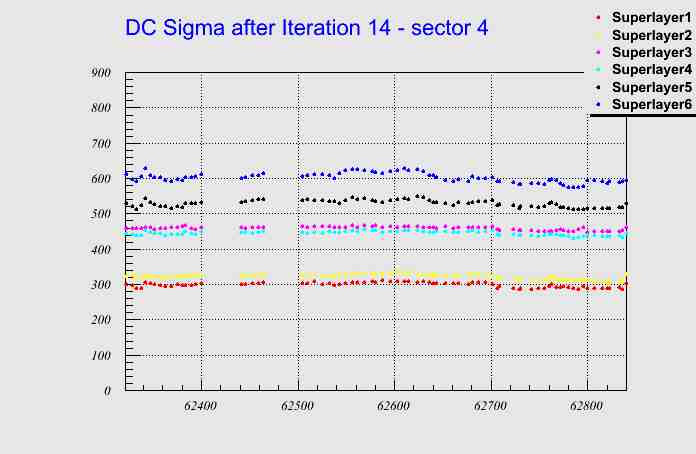

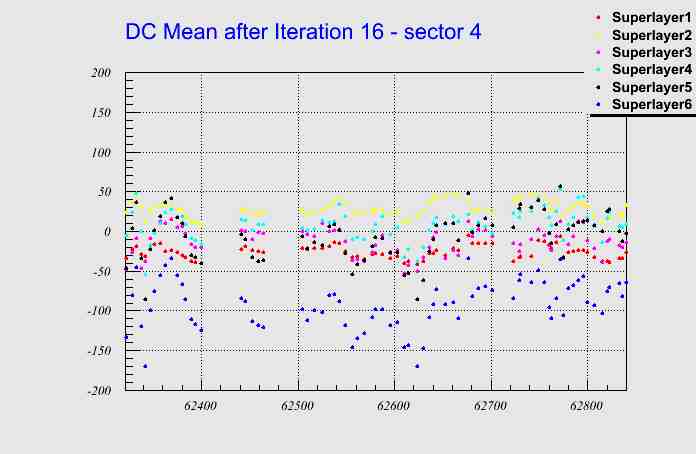

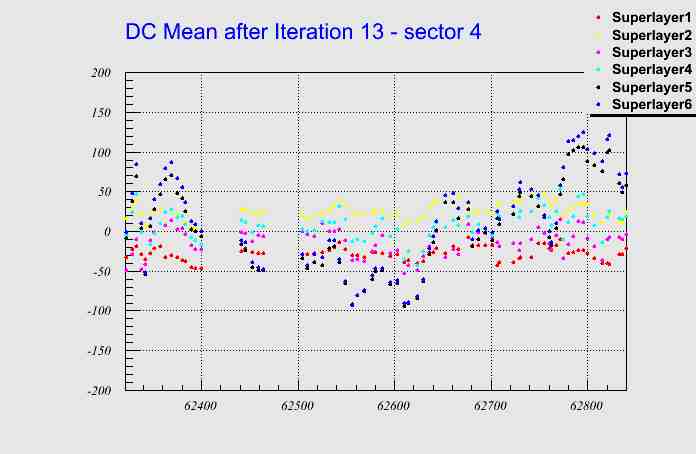

Sector 4

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

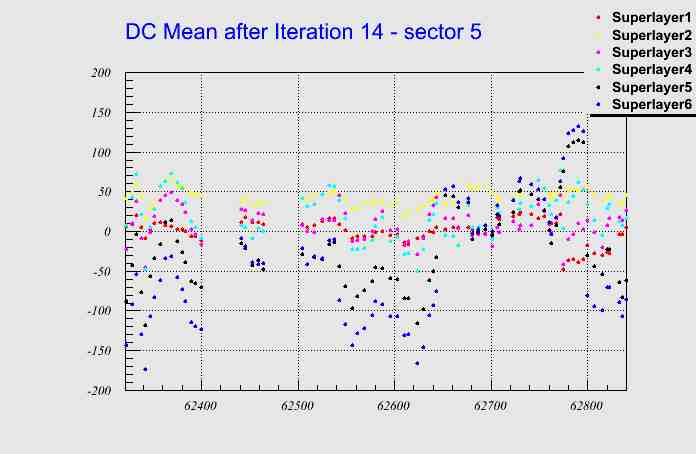

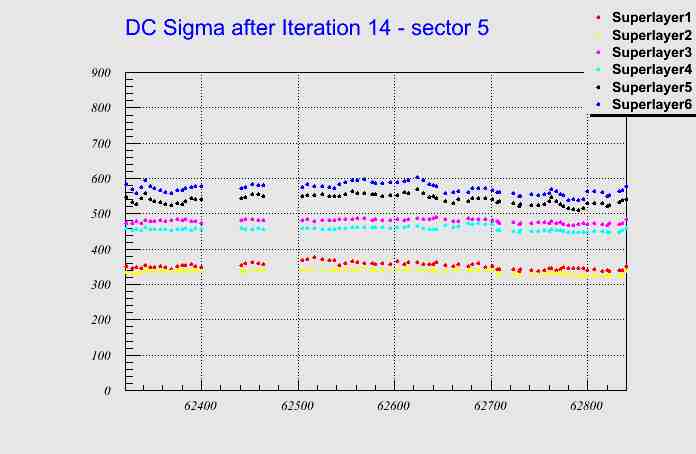

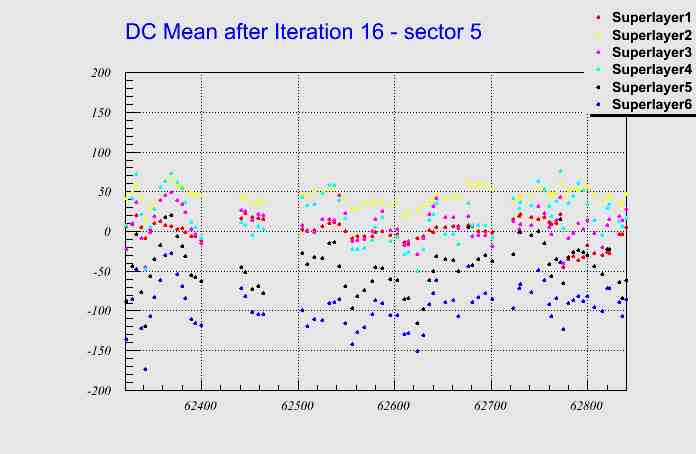

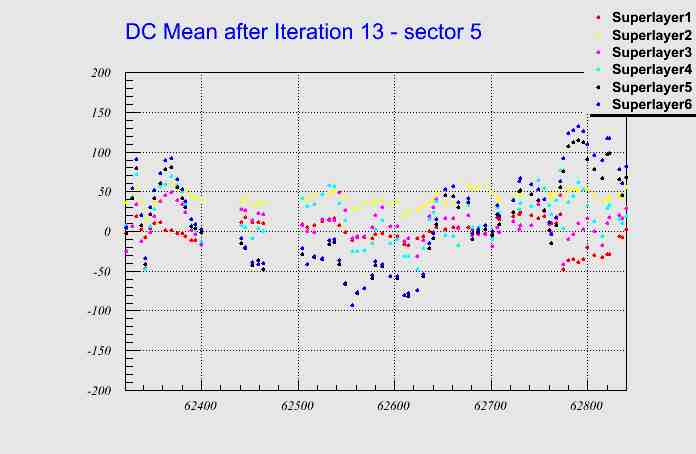

Sector 5

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )

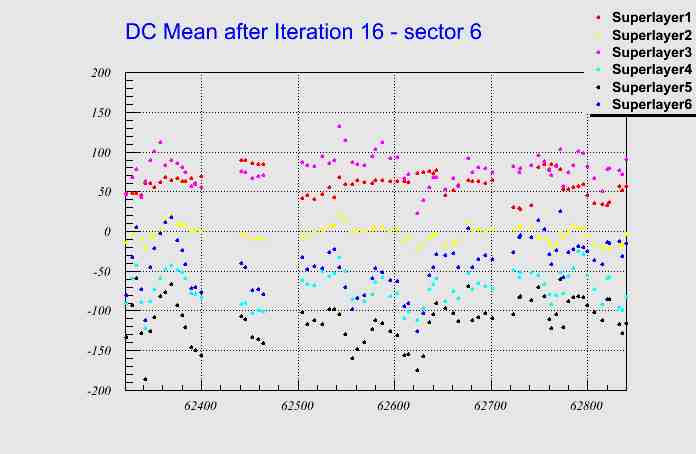

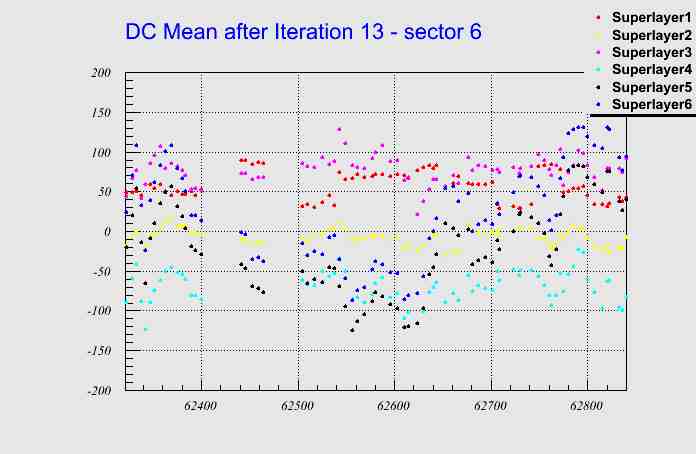

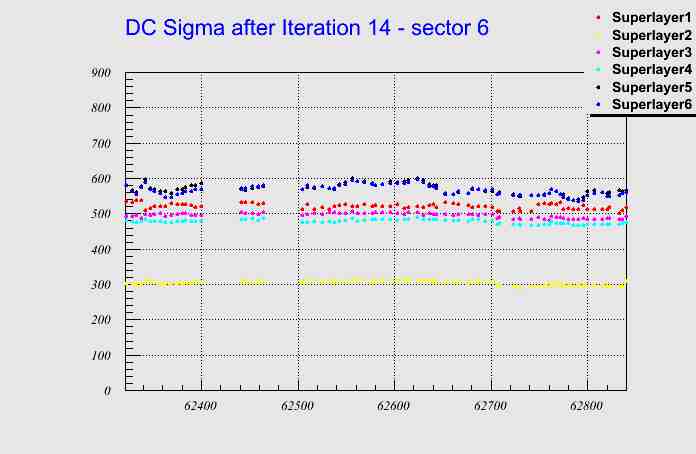

Sector 6

After 16th iteration (on the 32-bit)	After 14th iteration (on the 64-bit)	After 13th iteration ( starting line )
