The current issue of Normalization Factor (Nov 01 / 2011)

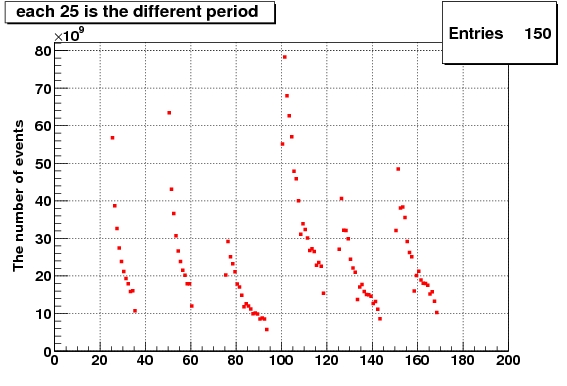

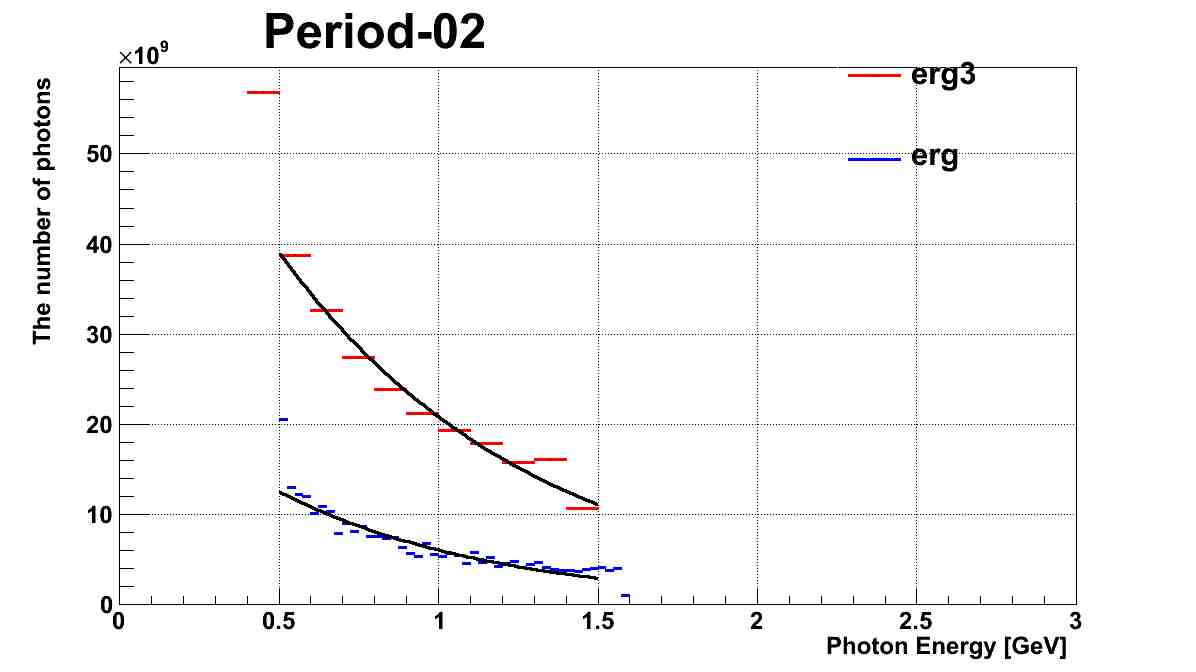

Step 1. Fit the plots with the number of photons

The fitting fnction I used : par[0] * exp( par[1]*x )
Per02 Per03 Per04 Per05 Per06 Per07

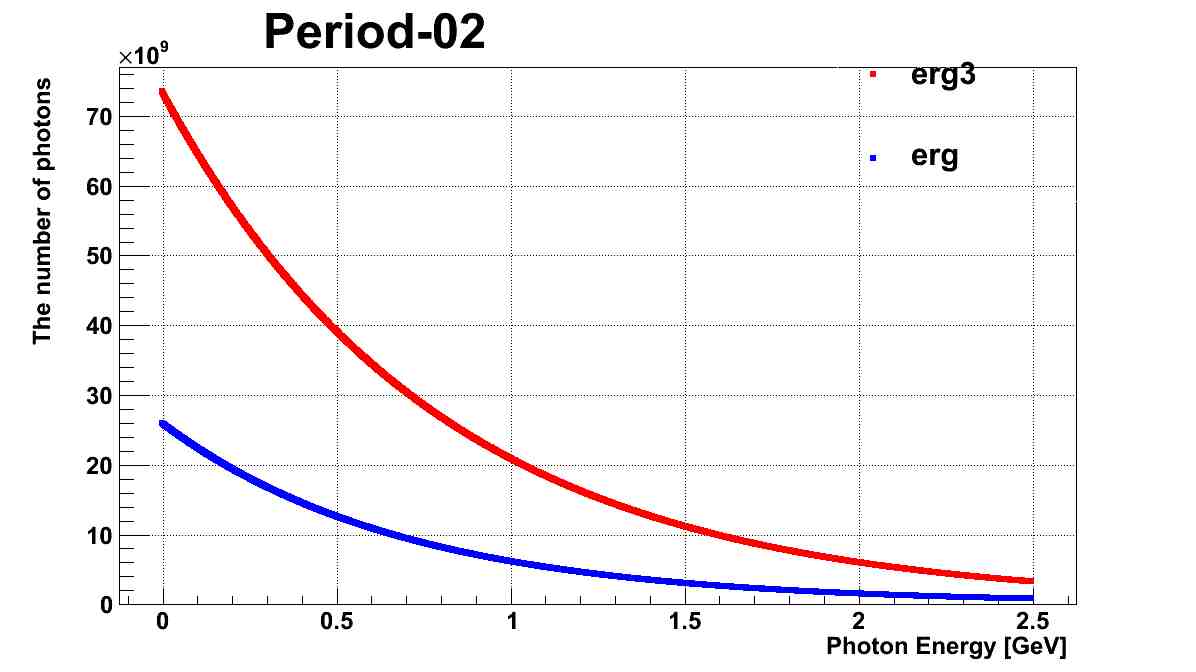

Step 2. Remake plots

In the Photon Energy (EBin)
Per02 Per03 Per04 Per05 Per06 Per07

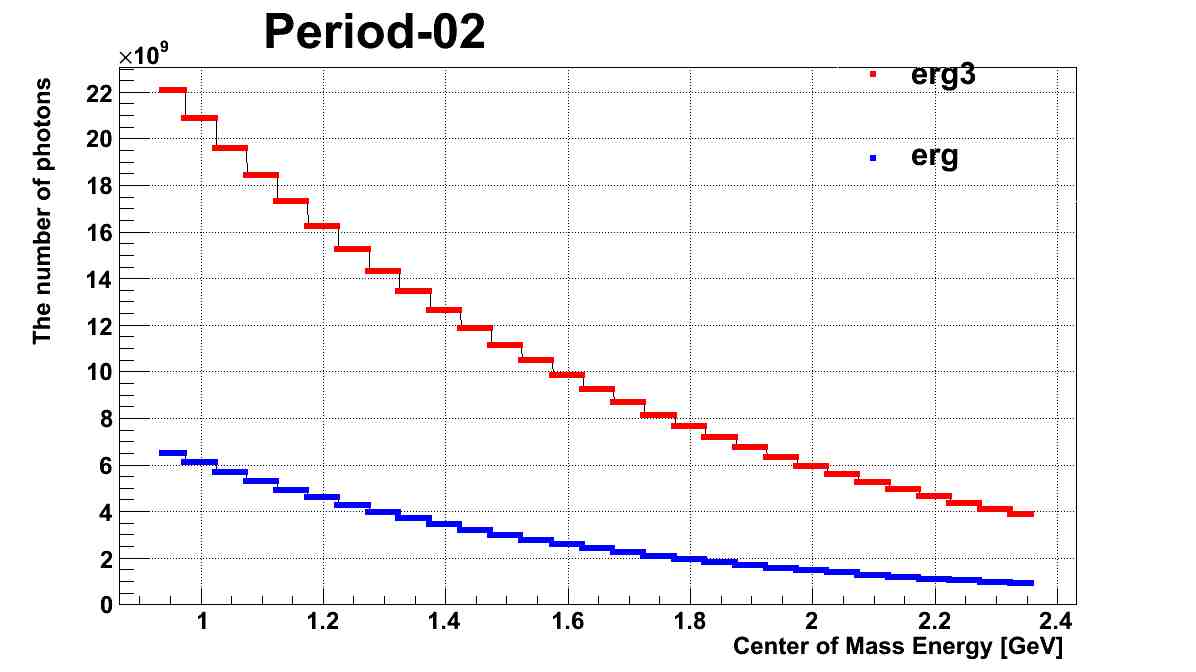

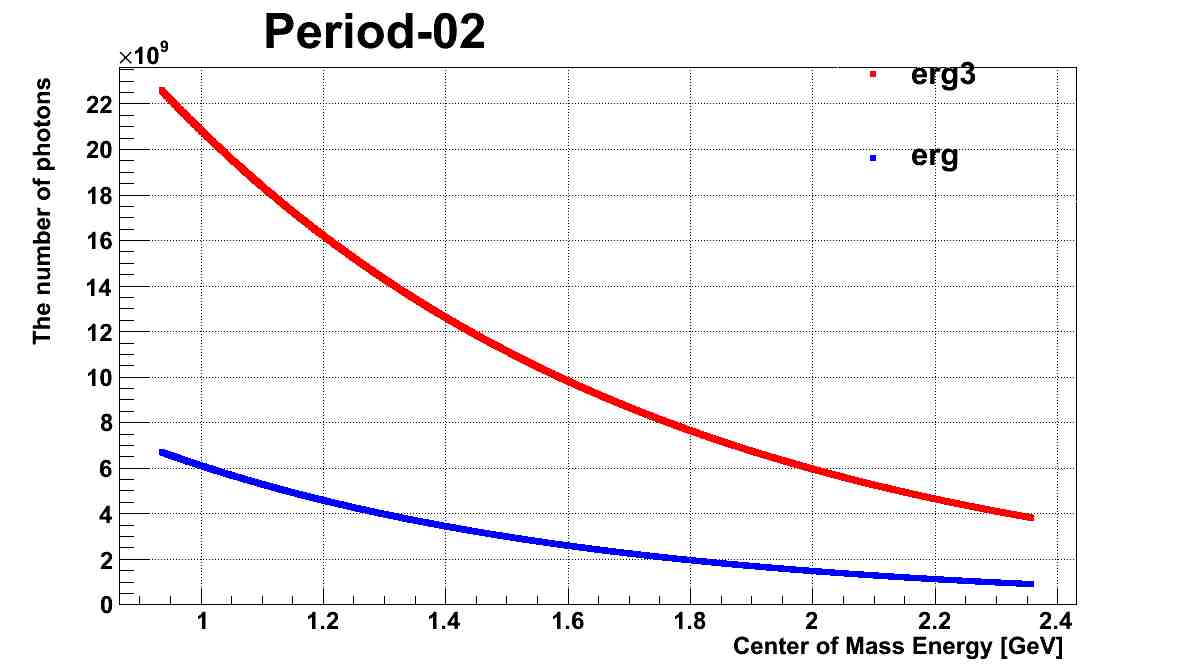

In the Center of Mass Energy (WBin)
Per02 Per03 Per04 Per05 Per06 Per07

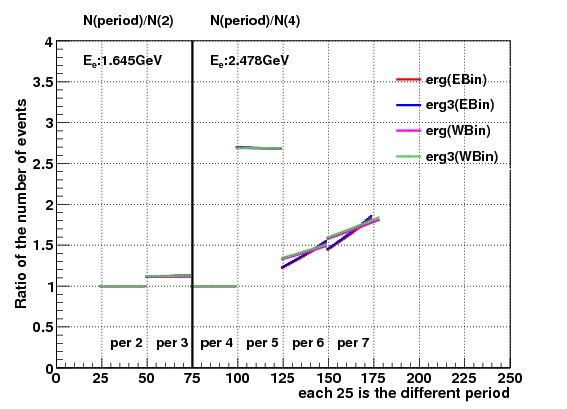

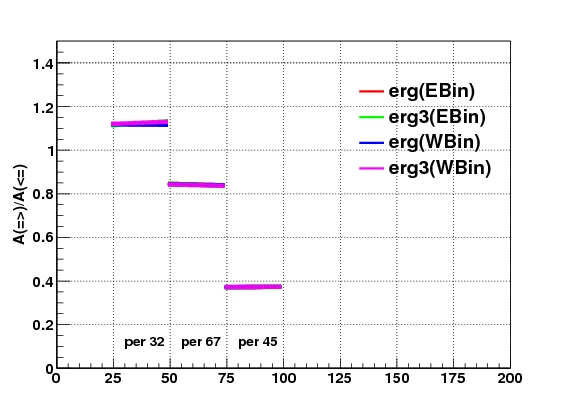

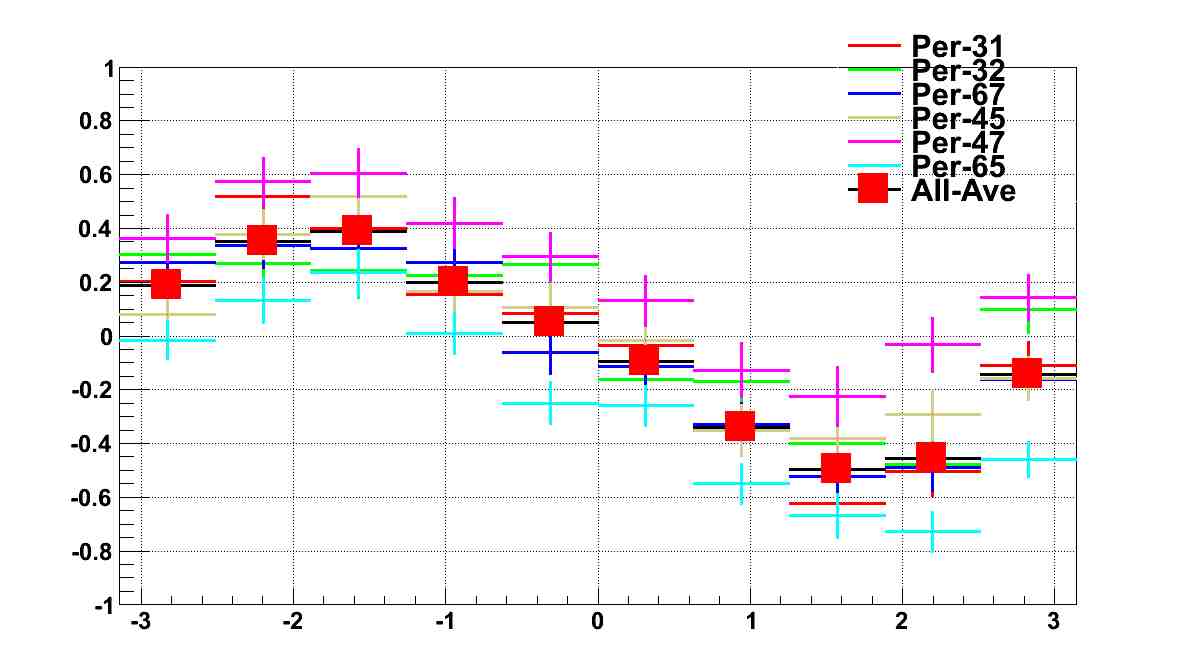

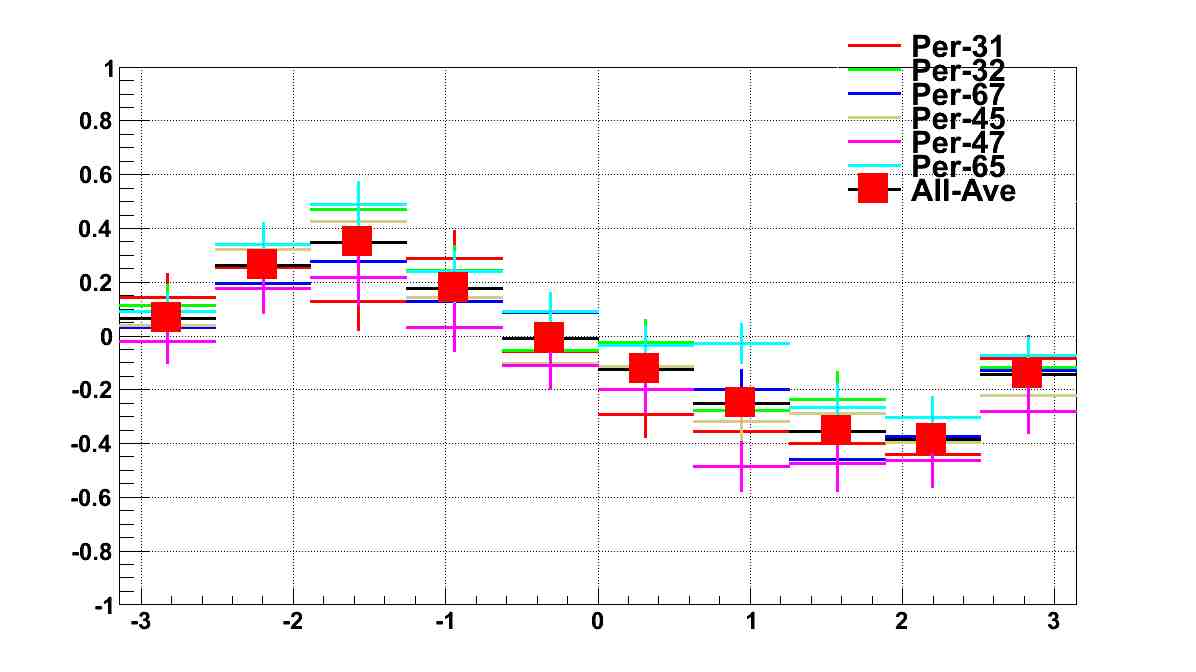

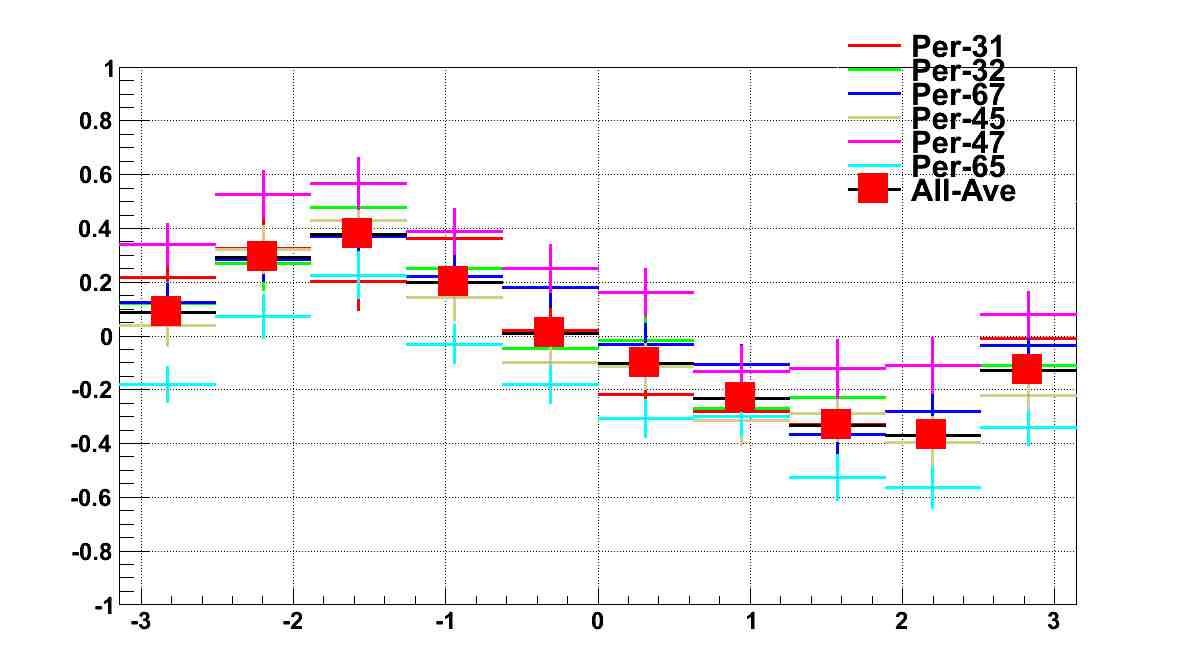

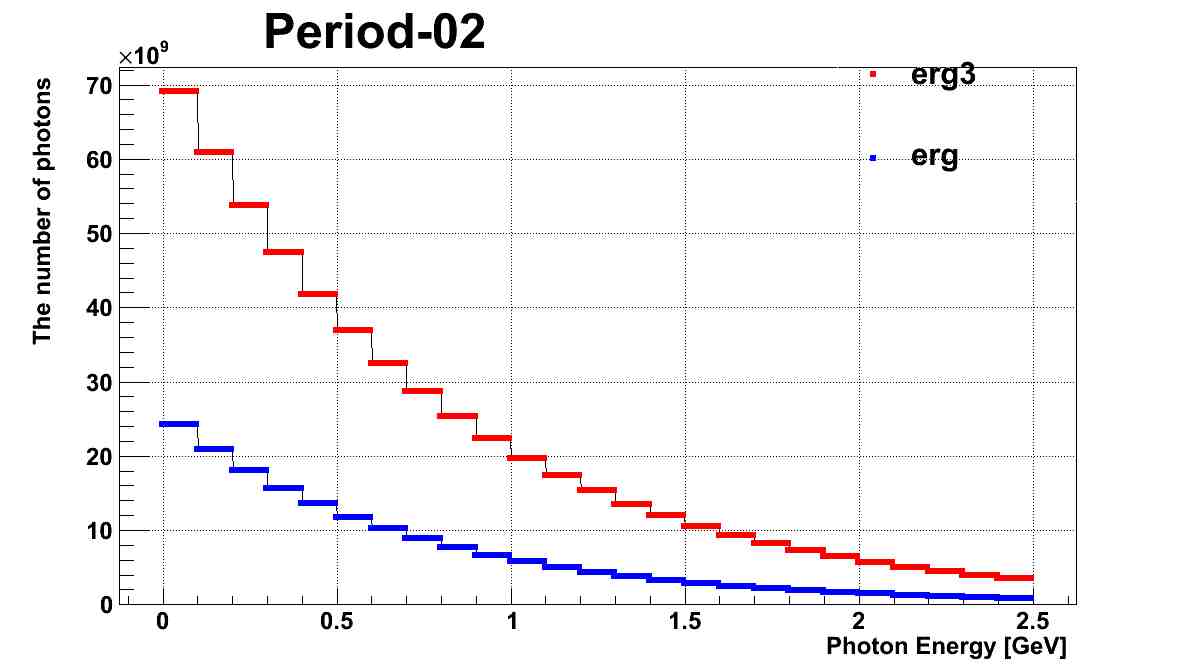

Step 3. Find the average

Per02 Per03 Per04 Per05 Per06 Per07
Per02 Per03 Per04 Per05 Per06 Per07

Step 4. Find the normalization

The current issue of Normalization Factor (Oct 28 / 2011)

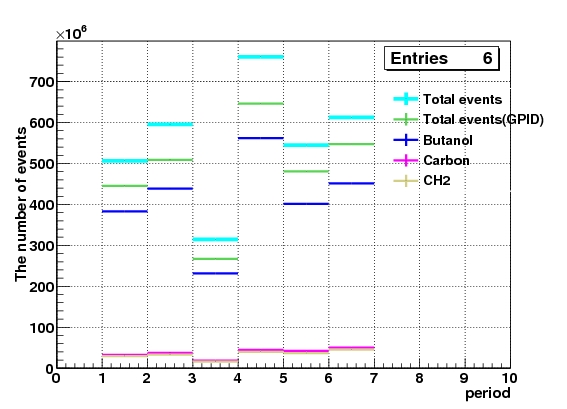

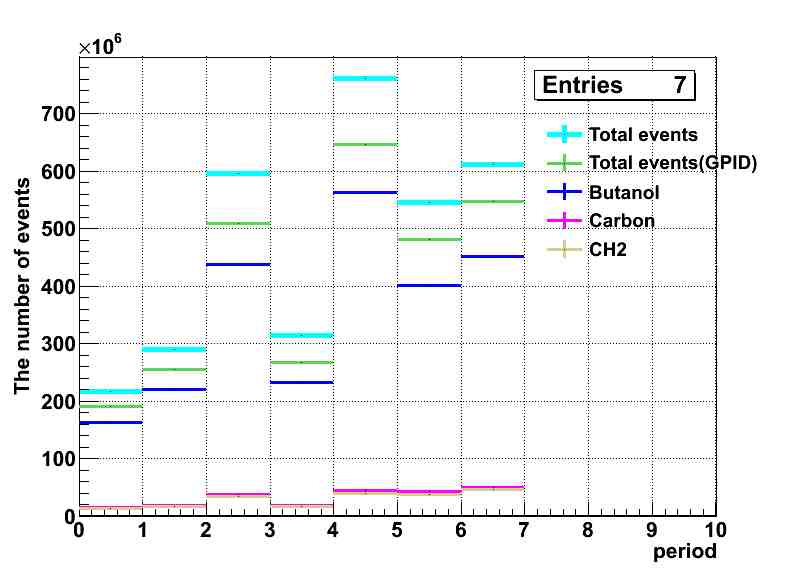

Step 1. Check the number of photons and events in periods

The number of photons ( from gflux )

The number of events ( from data )

  • Total events : Total events in all decay modes

  • Total events(GPID) : Total events with GPID bank in all decay modes

  • Butanol : # events measured in the butanol target

  • Carbon : # events measured in the carbon target

  • CH2 : # events measured in the CH2 target

Period E(e) [GeV] Target Pol. Total events Target
All events events with GPID bank Butanol Carbon CH2
2 1.645 <= 5.06383e+08 4.45383e+08 3.83210e+08 3.27416e+07 2.94309e+07
3 => 5.95545e+08 5.09058e+08 4.38334e+08 3.73482e+07 3.33759e+07
4 2.478 => 3.14900e+08 2.66888e+08 2.31933e+08 1.84907e+07 1.6464e+07
5 <= 7.60642e+08 6.46435e+08 5.62053e+08 4.4581e+07 3.98006e+07
6 => 5.44986e+08 4.80846e+08 4.0149e+08 4.23261e+07 3.70296e+07
7 <= 6.12474e+08 5.47213e+08 4.51357e+08 5.04338e+07 6.52615e+07

    Vertex cut I used

  • Butanol [-4.0,4.0]

  • Carbon [4.5,10.0]

  • Butanol [13.0,19.0]

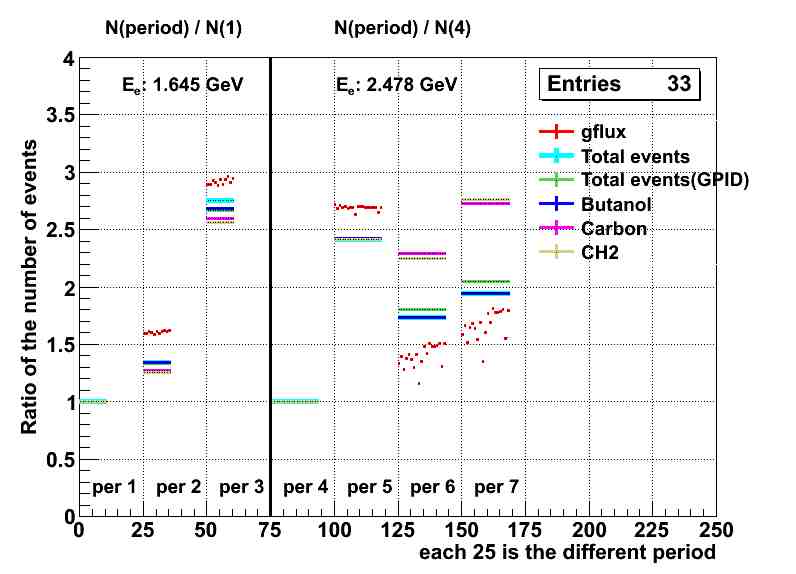

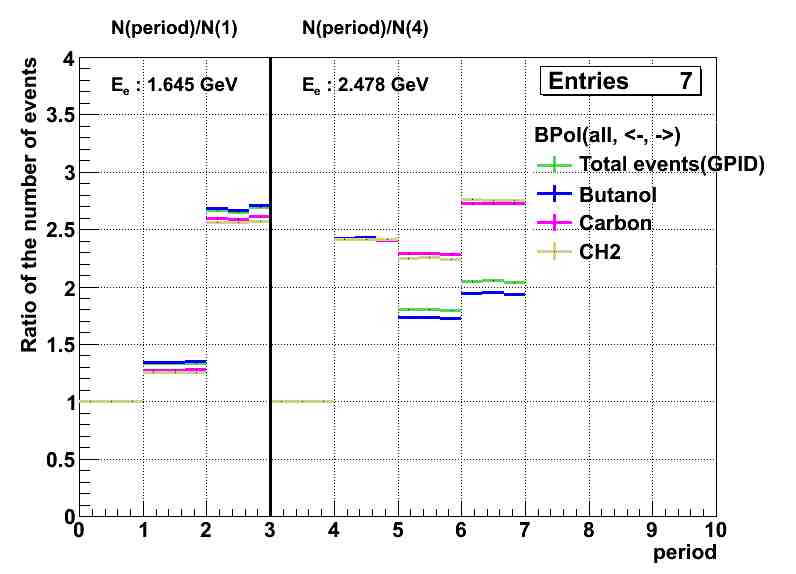

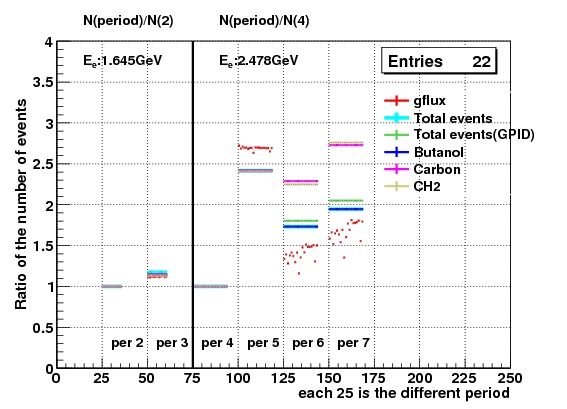

Step 2. Compare them together

We deivide data into two

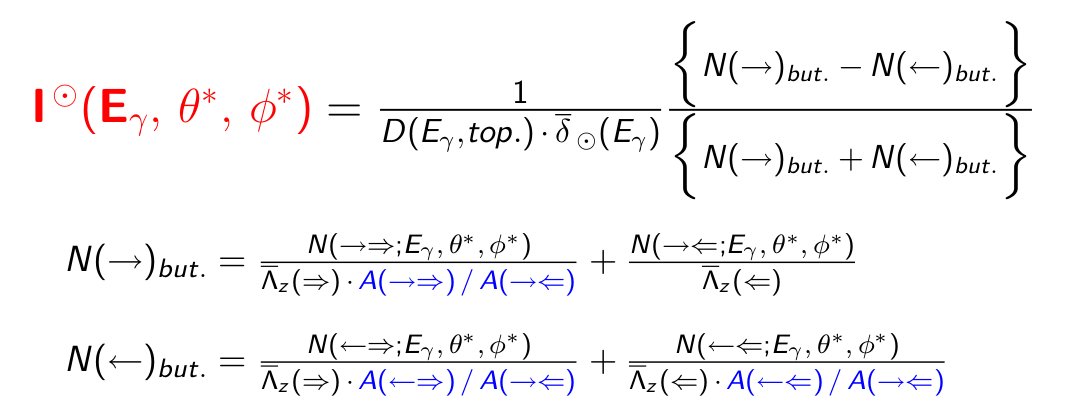

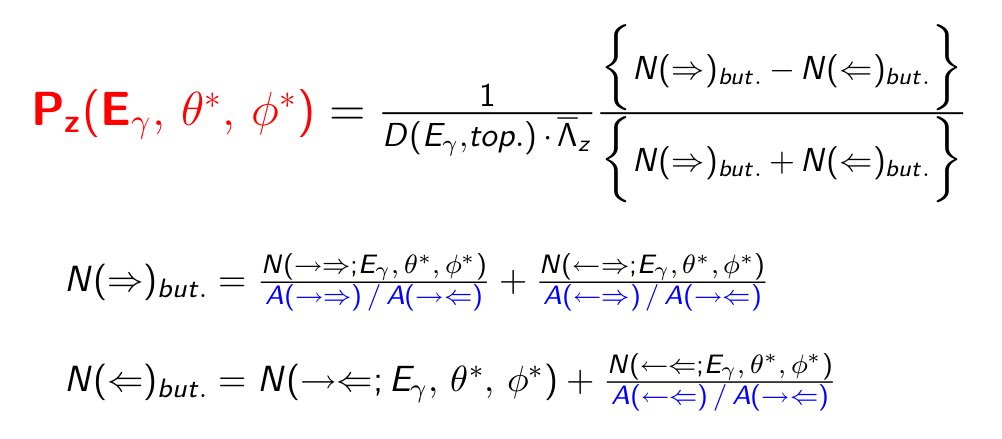

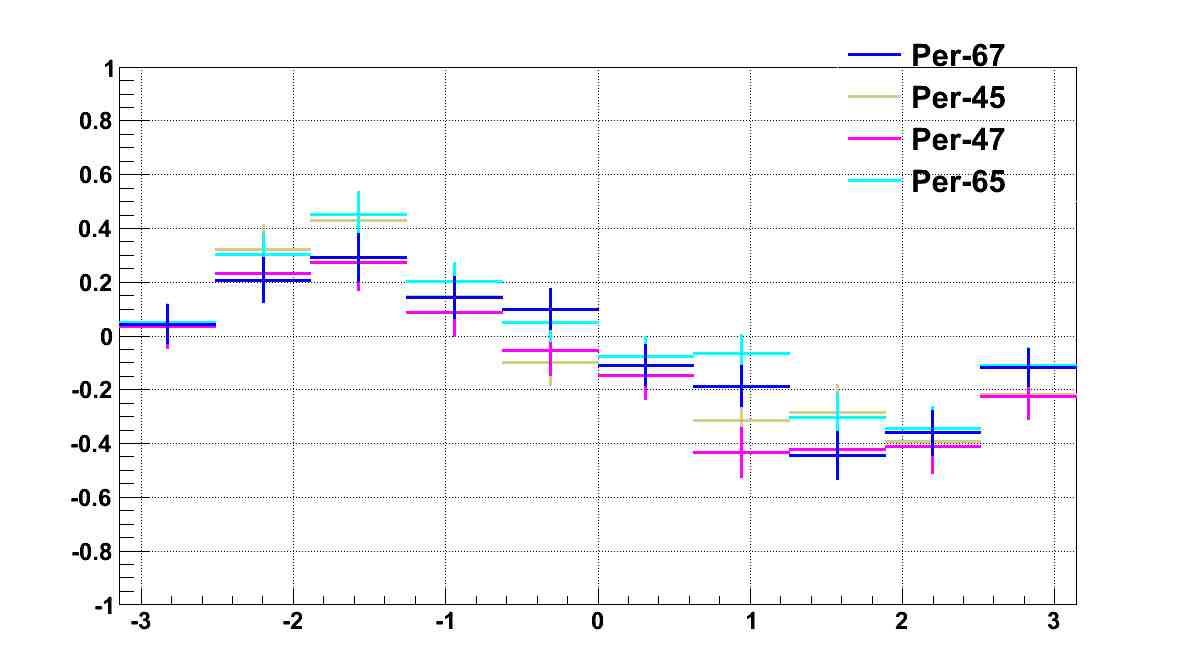

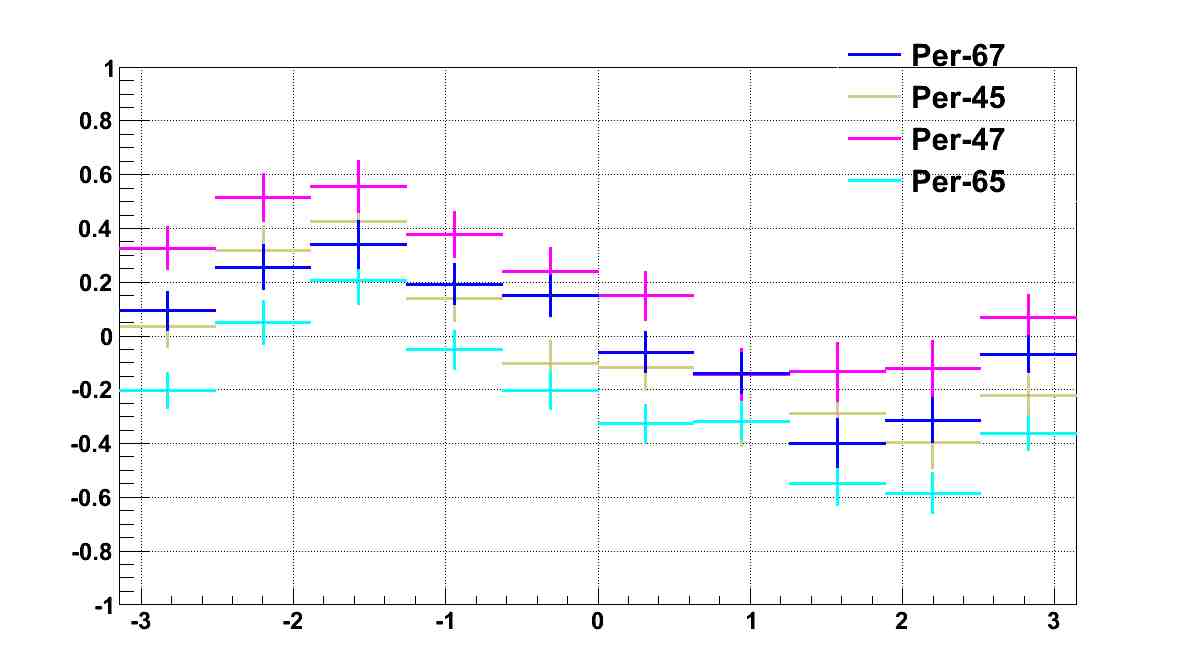

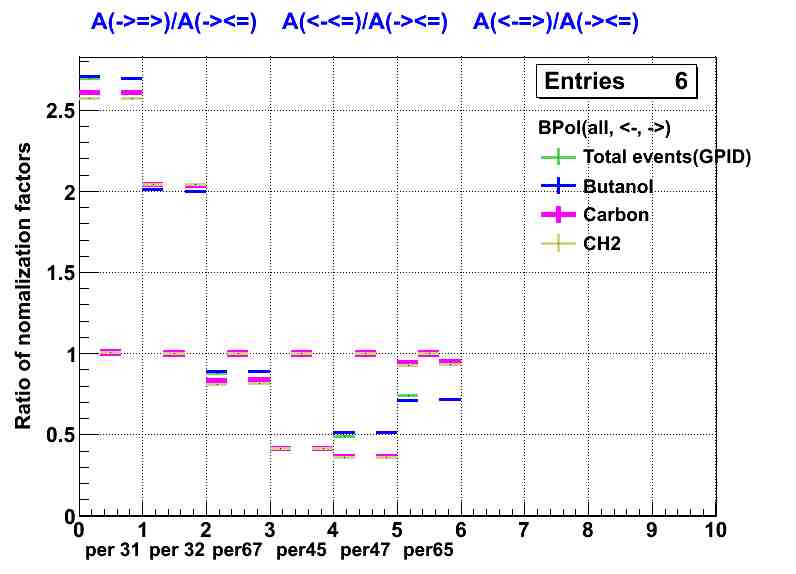

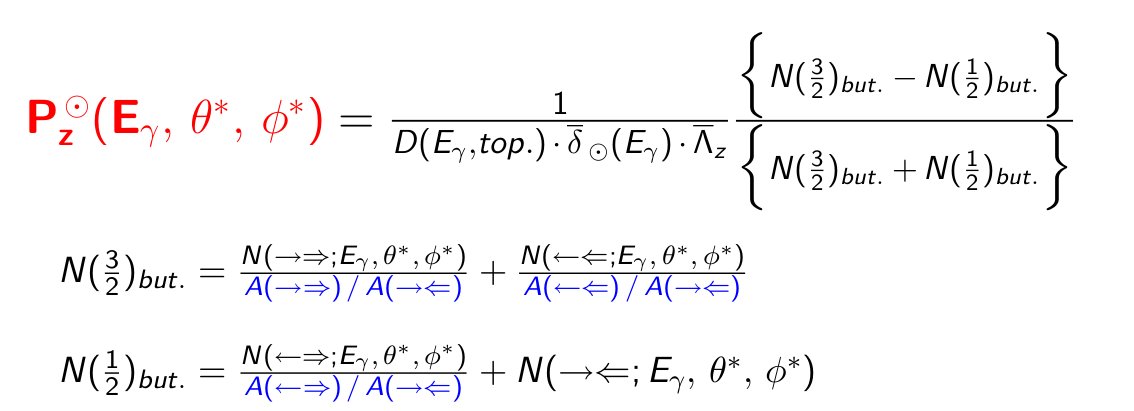

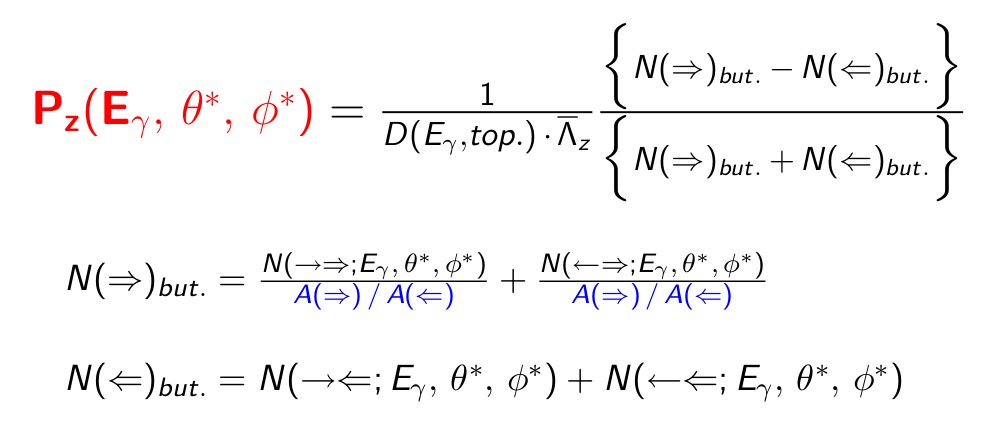

Step 3. Find the normalizaiton Factor (Pz)

The current issue of Normalization Factor (Oct 08 / 2011)

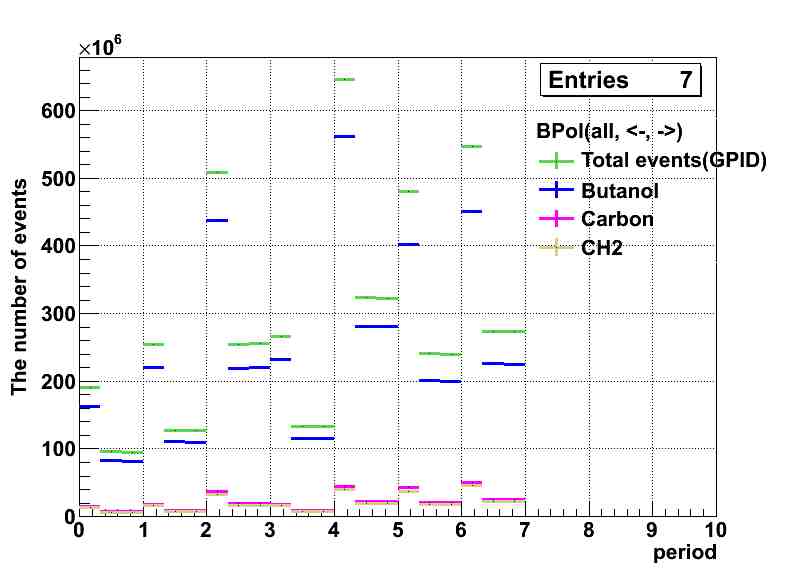

Step 1. Check the number of photons and events in periods

The number of events ( from data )

  • Total events(GPID) : Total events with GPID bank
    in all decay modes

  • Butanol : # events measured in the butanol target

  • Carbon : # events measured in the carbon target

  • CH2 : # events measured in the CH2 target


  • There are three lines in each period.
    • The second line is made in BPol( <- )
    • The third line is made in BPol( -> )
    • The first line is made without considering BPol
Period E(e) [GeV] Target Pol. Beam Pol. Total events Target
All events events with GPID bank Butanol Carbon CH2
1 1.645 <= All 2.16041e+08 1.90859e+08 1.63444e+08 1.43816e+07 1.30332e+07
<- . 9.60163e+07 8.22704e+07 7.21498e+06 6.53092e+06
-> 9.48426e+07 8.11737e+07 7.16664e+06 6.50233e+06
2 <= All 2.90342e+08 2.54524e+08 2.19766e+08 1.836e+07 1.63977e+07
<- . 1.27718e+08 1.10317e+08 9.18955e+06 8.2108e+06
-> 1.26806e+08 1.09449e+08 9.17048e+06 8.18688e+06
3 => All 5.95545e+08 5.09058e+08 4.38334e+08 3.73482e+07 3.33759e+07
<- . 2.5442e+08 2.1902e+08 1.86874e+07 1.6712e+07
-> 2.55394e+08 2.19975e+08 1.87116e+07 1.67082e+07
4 2.478 => All 3.14900e+08 2.66888e+08 2.31933e+08 1.84907e+07 1.6464e+07
<- . 1.33391e+08 1.15905e+08 9.24881e+06 8.23769e+06
-> 1.33666e+08 1.16176e+08 9.25379e+06 8.23654e+06
5 <= All 7.60642e+08 6.46435e+08 5.62053e+08 4.4581e+07 3.98006e+07
<- . 3.23788e+08 2.81553e+08 2.23217e+07 1.99135e+07
-> 3.22858e+08 2.80682e+08 2.22753e+07 1.99009e+07
6 => All 5.44986e+08 4.80846e+08 4.0149e+08 4.23261e+07 3.70296e+07
<- . 2.40861e+08 2.01063e+08 2.12221e+07 1.85765e+07
-> 2.39985e+08 2.00428e+08 2.1104e+07 1.84531e+07
7 <= All 6.12474e+08 5.47213e+08 4.51357e+08 5.04338e+07 6.52615e+07
<- . 2.74068e+08 2.26138e+08 2.522e+07 2.27103e+07
-> 2.73146e+08 2.25219e+08 2.52138e+07 2.27128e+07

    Vertex cut I used

  • Butanol [-4.0,4.0]

  • Carbon [4.5,10.0]

  • Butanol [13.0,19.0]

Step 2. Compare them together

Step 3. Find the normalizaiton Factor (Pz)

The current issue of Normalization Factor (Sep 28 / 2011)

Step 1. Check the number of photons and events in periods

The number of photons ( from gflux )

The number of events ( from data )

  • Total events : Total events in all decay modes

  • Total events(GPID) : Total events with GPID bank in all decay modes

  • Butanol : # events measured in the butanol target

  • Carbon : # events measured in the carbon target

  • CH2 : # events measured in the CH2 target

Period E(e) [GeV] Target Pol. Total events Target
All events events with GPID bank Butanol Carbon CH2
1 1.645 <= 2.16041e+08 1.90859e+08 1.63444e+08 1.43816e+07 1.30332e+07
2 <= 2.90342e+08 2.54524e+08 2.19766e+08 1.836e+07 1.63977e+07
3 => 5.95545e+08 5.09058e+08 4.38334e+08 3.73482e+07 3.33759e+07
4 2.478 => 3.14900e+08 2.66888e+08 2.31933e+08 1.84907e+07 1.6464e+07
5 <= 7.60642e+08 6.46435e+08 5.62053e+08 4.4581e+07 3.98006e+07
6 => 5.44986e+08 4.80846e+08 4.0149e+08 4.23261e+07 3.70296e+07
7 <= 6.12474e+08 5.47213e+08 4.51357e+08 5.04338e+07 6.52615e+07

    Vertex cut I used

  • Butanol [-4.0,4.0]

  • Carbon [4.5,10.0]

  • Butanol [13.0,19.0]

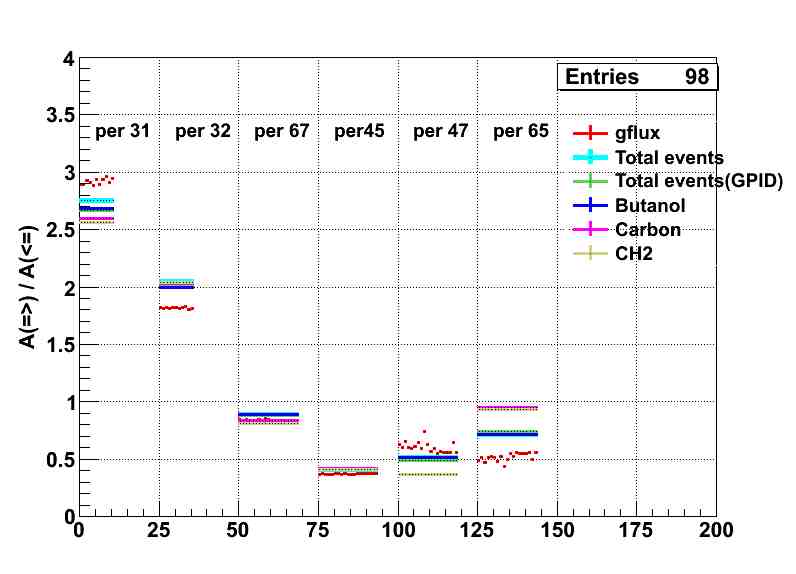

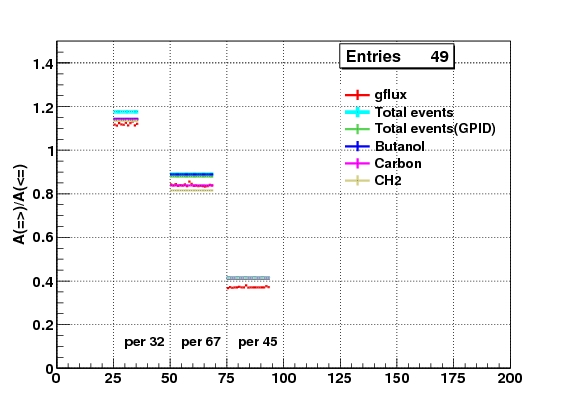

Step 2. Compare them together

We deivide data into two

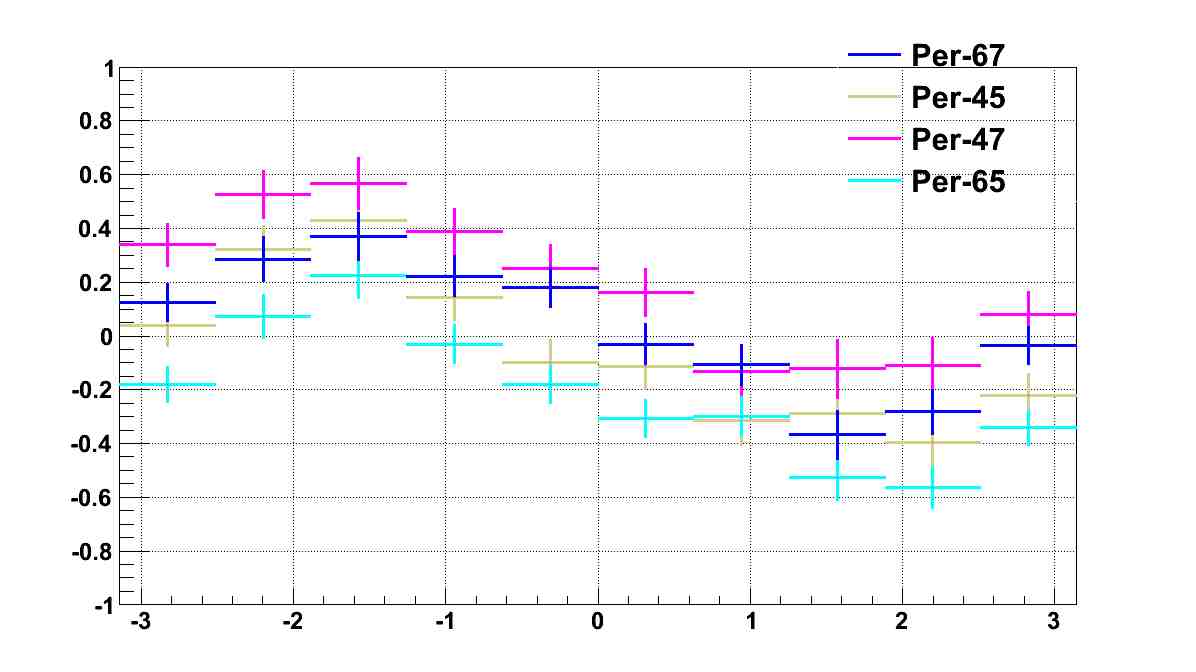

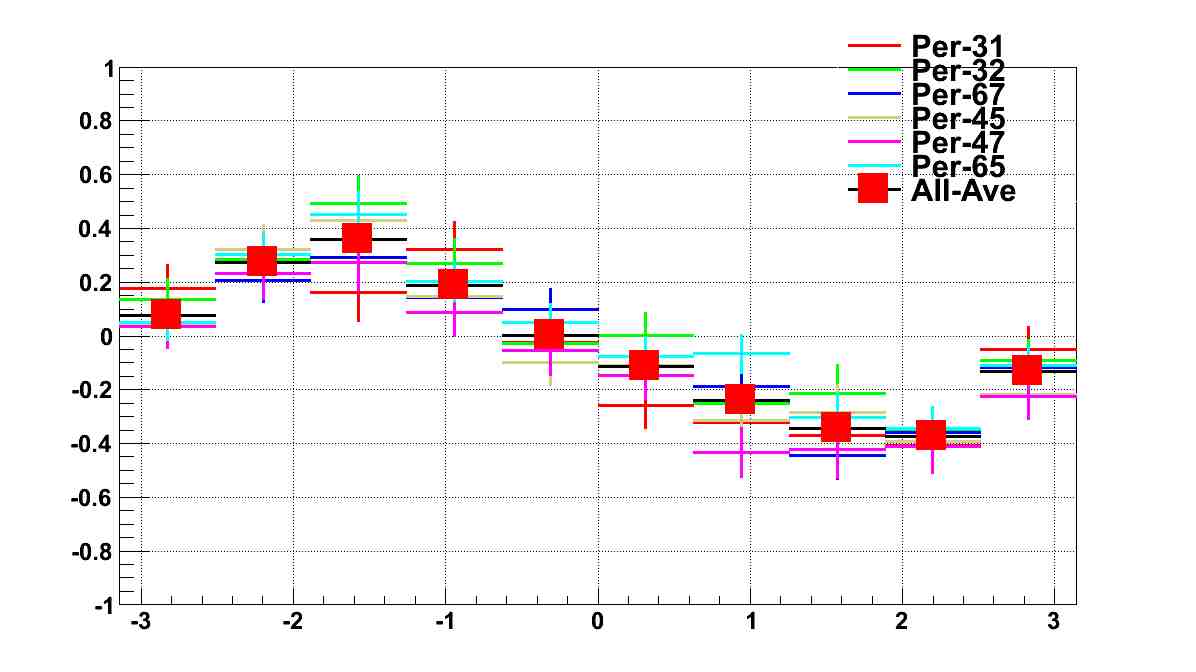

Step 3. Find the normalizaiton Factor (Pz)

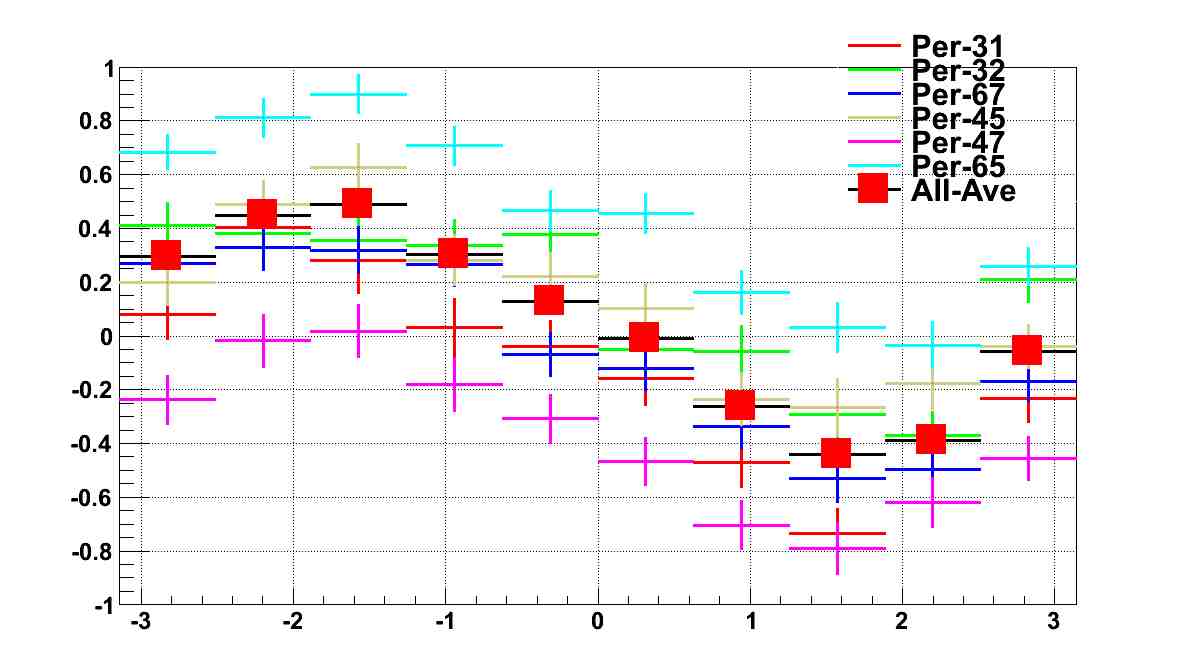

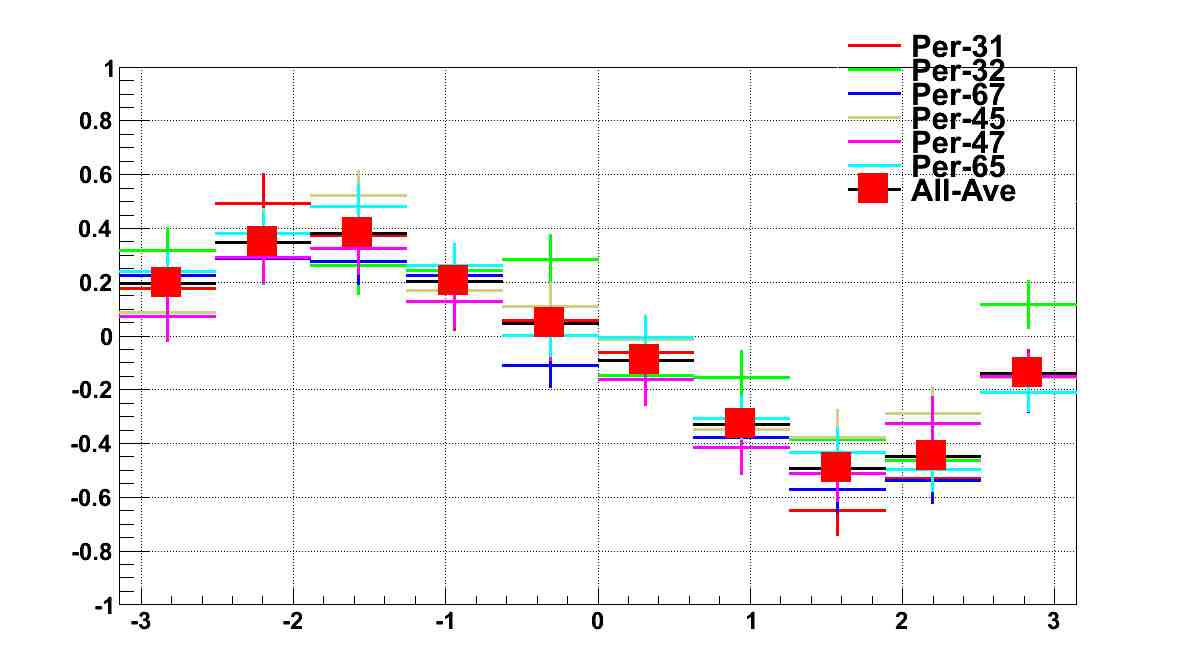

A) 700 < E(γ) < 800 , 0.5 < cos θ < 0.6

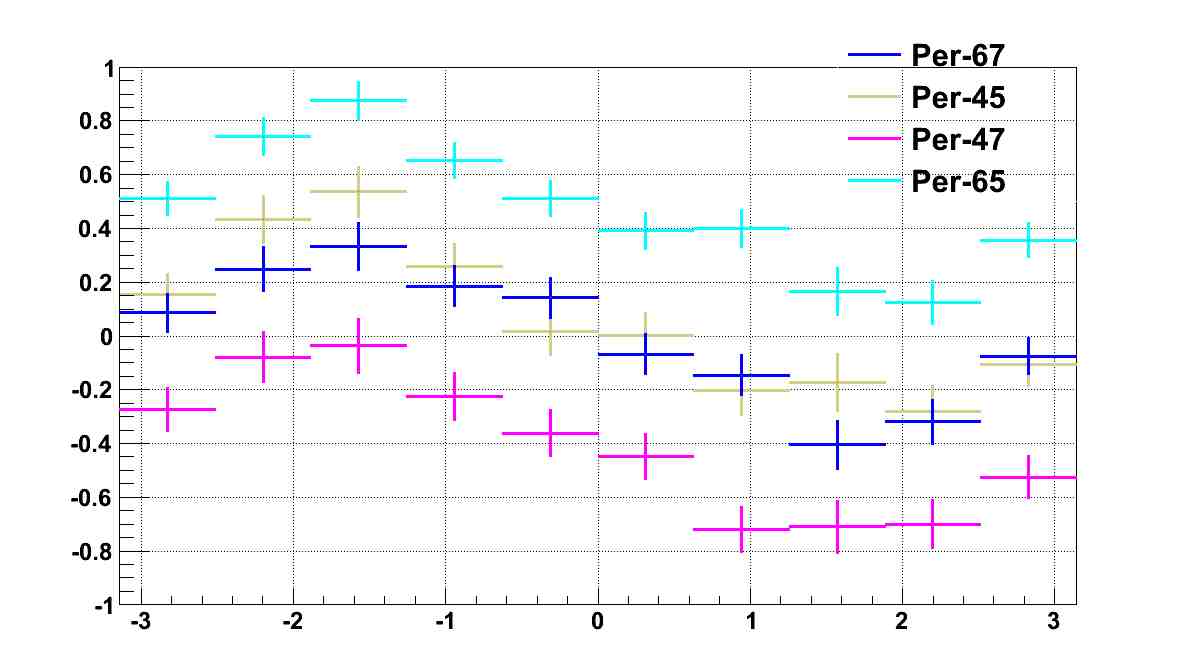

using gflux

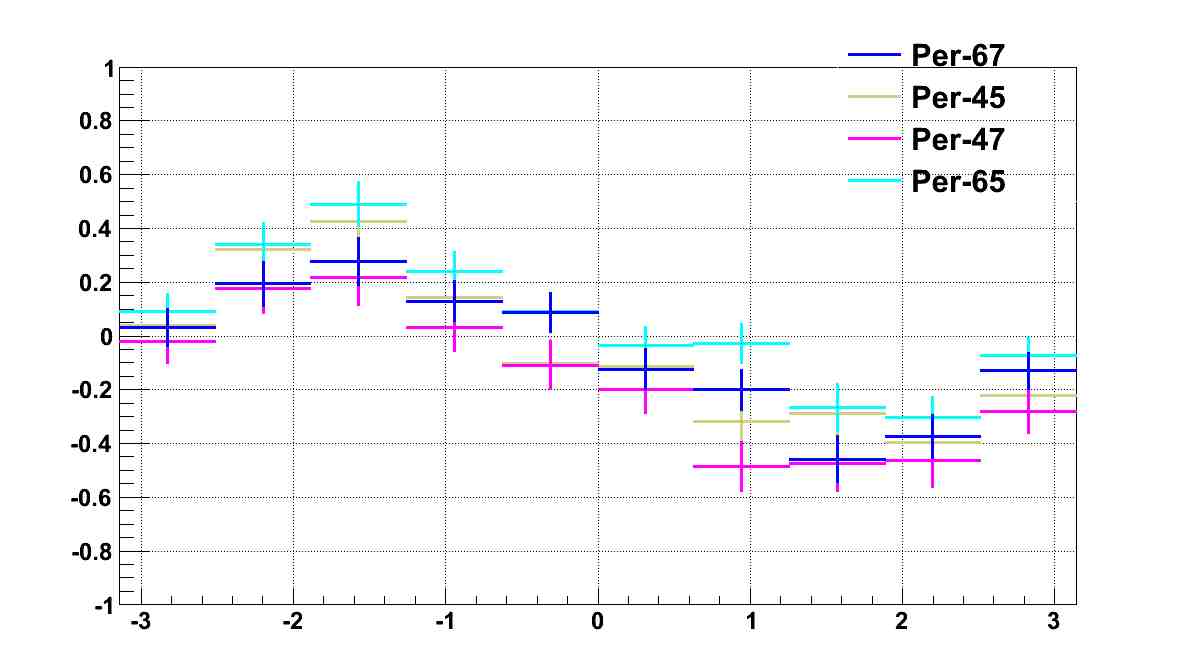

using Total events

using Total events (GPID)

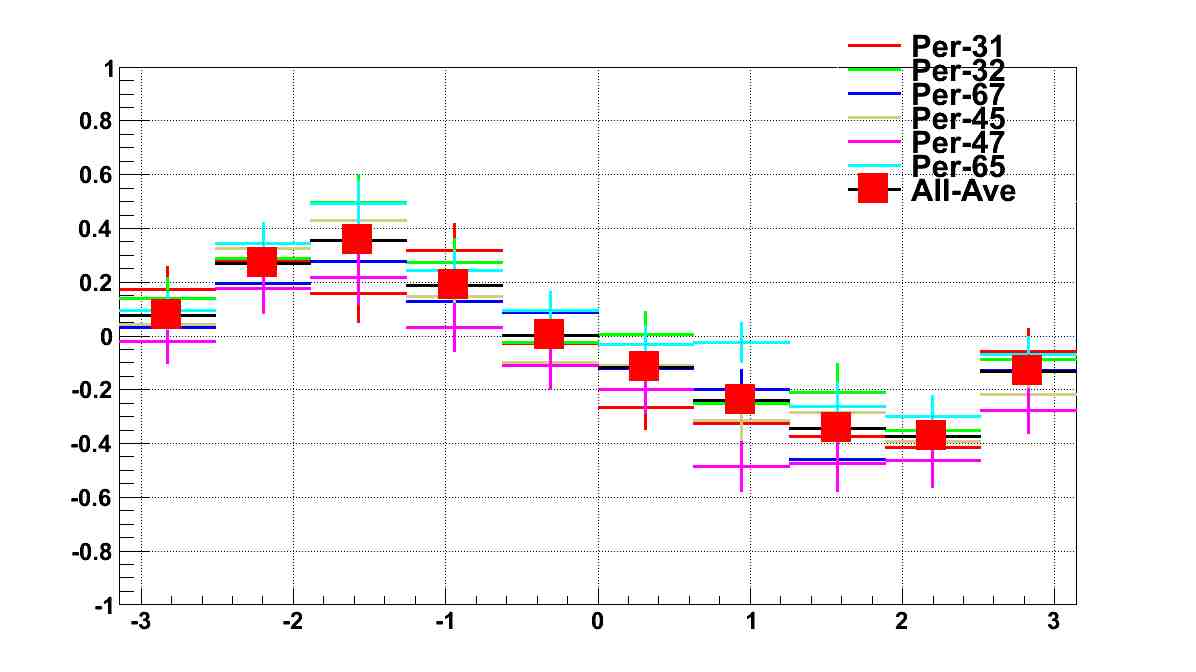

using Butanol

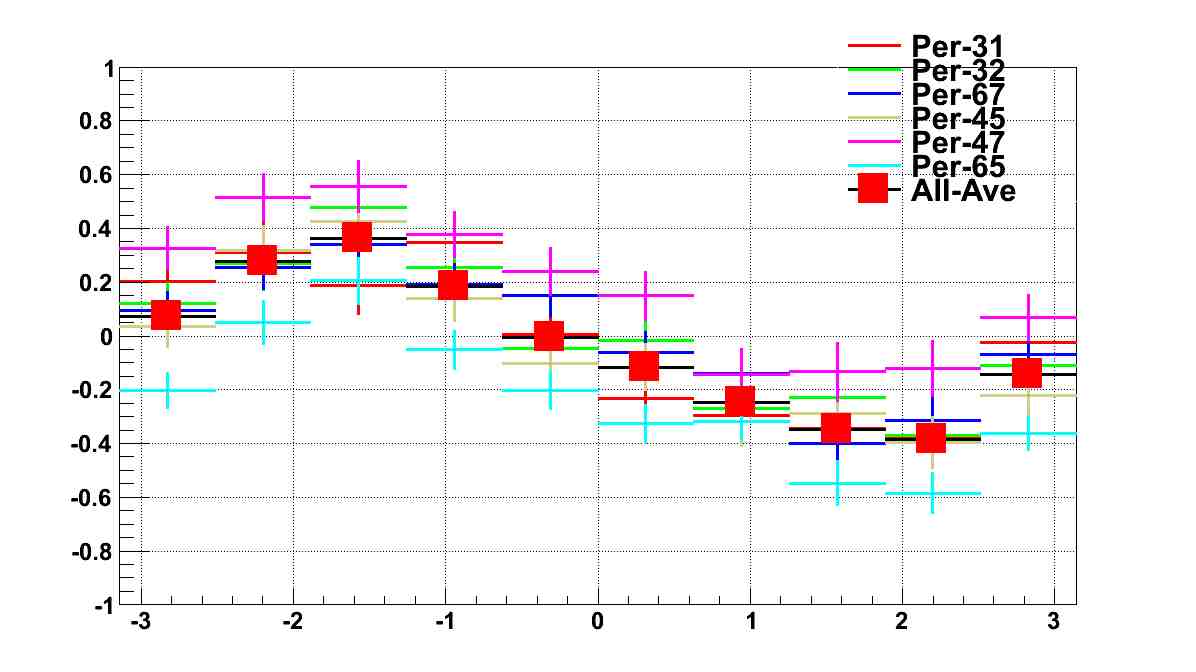

using Carbon

using CH2

A-1) 700 < E(γ) < 800 , 0.5 < cos θ < 0.6

using gflux

using Total events

using Total events (GPID)

using Butanol

using Carbon

using CH2

B) 700 < E(γ) < 800 , 0.6 < cos θ < 0.7

using gflux

using Total events

using Total events (GPID)

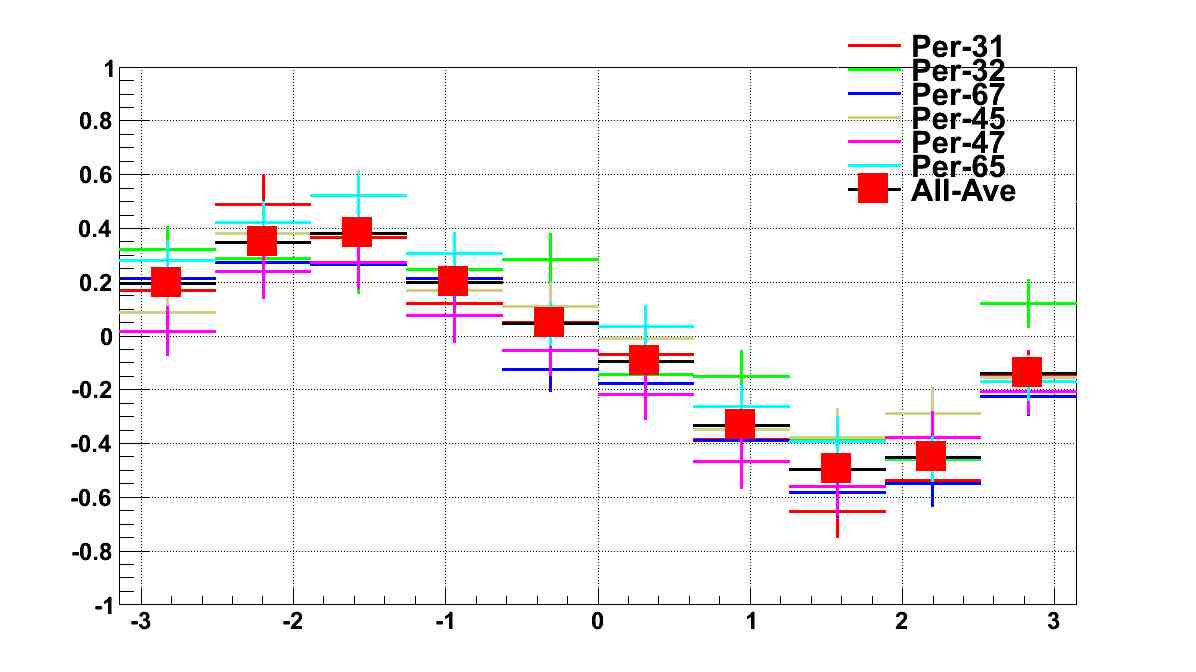

using Butanol

using Carbon

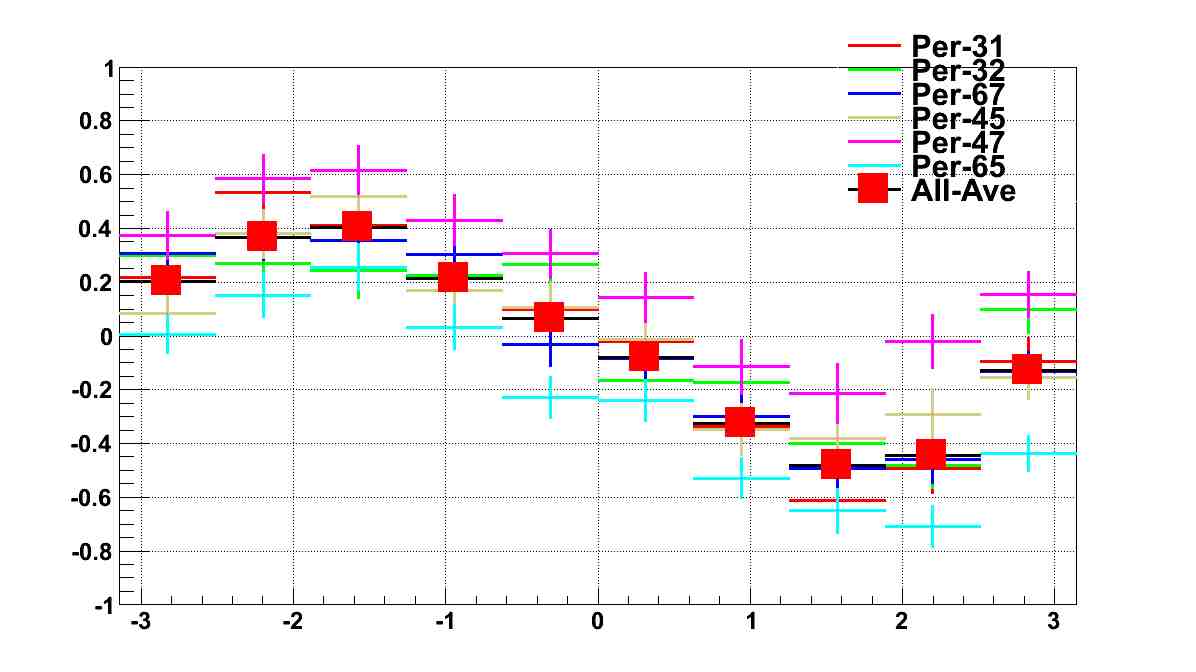

using CH2

The current issue of Normalization Factor (Aug 11 / 2011)

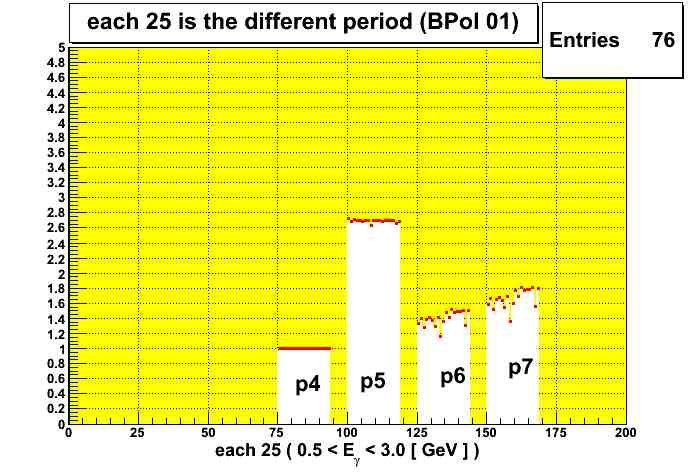

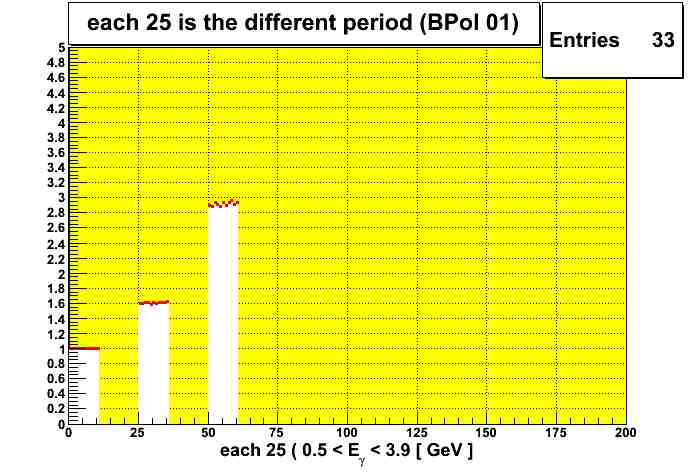

In circular polarized beam data, there are seven groups, which have similar conditions (target polarization, 1/2 wavw plate status)
We have defined them as the periods.
To get the normalization factor in g9a, we have checked the number of photons in gflux files and the number of events in g9a Table per each period.

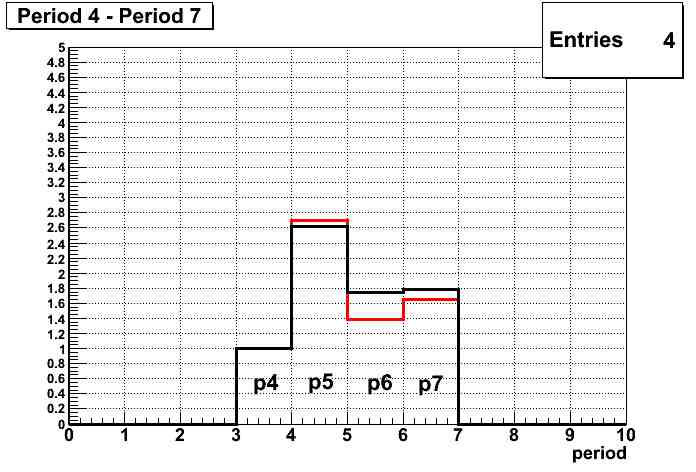

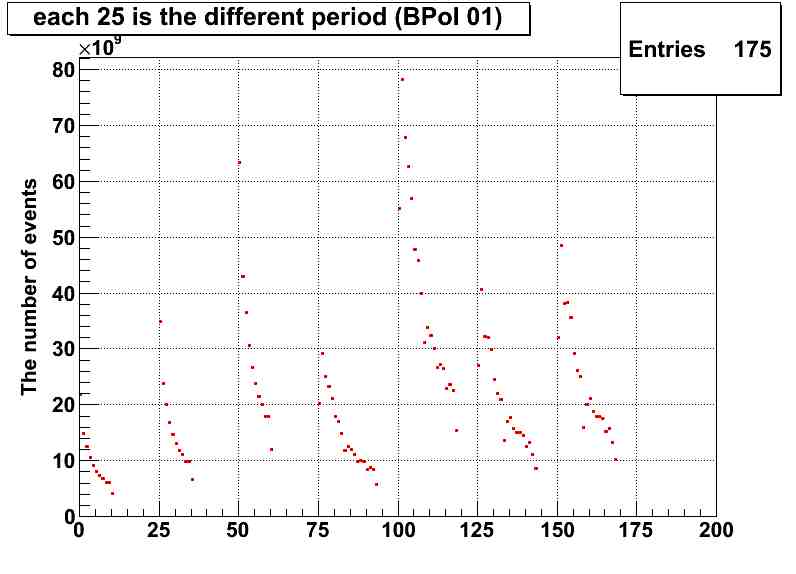

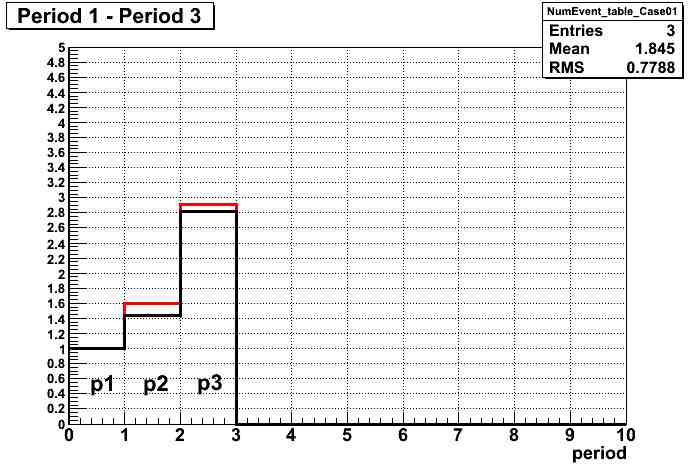

The red line - the number of photons in gflux files per periods
The black line - the number of events in g9a Table per periods
The red point - the number of photons in gflux files per periods and energies
period The total number of events (Data) The total number of photon (gflux) The total number of events (table)
1 233446093 1 1
2 262360388 1.6023 1.44272
3 488249261 2.91209 2.81308
4 . 1 1
5 666654222 2.69326 2.61506
6 534316602 1.38374 1.73858
7 524868182 1.64817 1.78893
